83-97 EFI Mustang Stealth 340 & Hanger

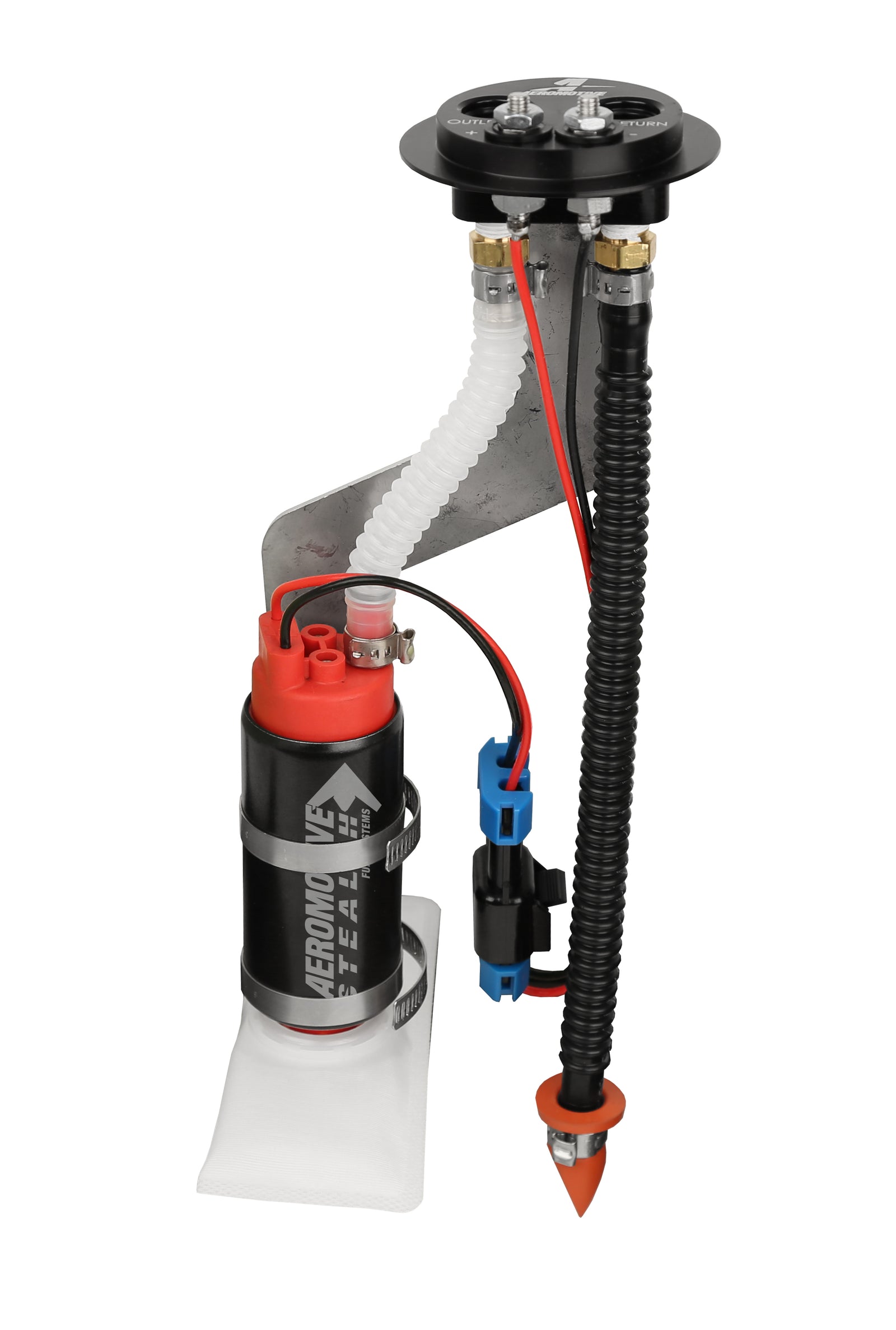

Billet Fuel Pump Hanger and High Flow 340 Stealth Pump assembly drops into stock tank.  Supports high-flow, high horsepower combinations in stock 83-97 Mustang EFI fuel tanks.  Eliminates fuel starvation and return aeration common to the factory Mustang hanger.

Now through 3/31/19 get a $25 Rebate from Aeromotive!

Download the rebate form HERE

*Assembly Fits all 83-97 Mustang OEM – EFI Fuel Tanks*

Features:

  • CNC machined billet aluminum hat fits stock opening, with ORB-06 outlet and return ports.
  • Supports AN-06 or AN-08 fuel lines with P/N 15606 or P/N 15649 port fittings respectively.
  • 6065 aluminum hat is bright dip anodized black and laser engraved for good looks and durability.
  • Stainless Steel pump mounting bracket.
  • OEM grade convoluted tubing on supply and return for durability and high flow.
  • Extended, high flow return with anti-siphon eliminates aeration and cavitation.

Optional:

This fuel pump hanger makes it convenient to hook up -6AN or -8AN fuel lines with the proper fittings. Use the drop down menu to select the parts needed for your setup!

Aeromotive Fittings

Fuel Injected Engines:

  • Gasoline: up to 850 HP – naturally aspirated.
  • Gasoline: up to 700 HP – forced air induction.
  • E85: up to 595 HP – naturally aspirated.
  • E85: up to 490 HP – forced air induction.

Carbureted Engines:

  • Gasoline: up to 1000 HP – naturally aspirated.
  • Gasoline: up to 850 HP – forced air induction.
  • E85: up to 700 HP – naturally aspirated.
  • E85: up to 595 HP – forced air induction.
